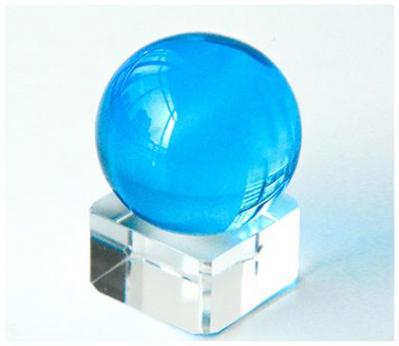

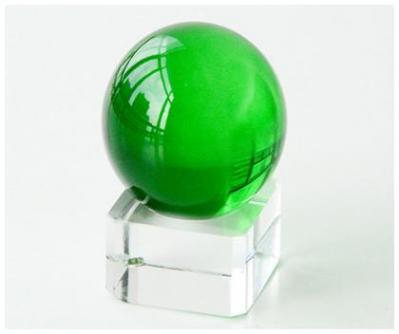

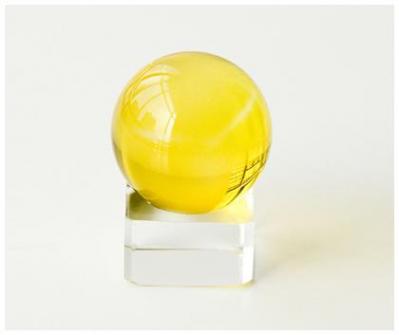

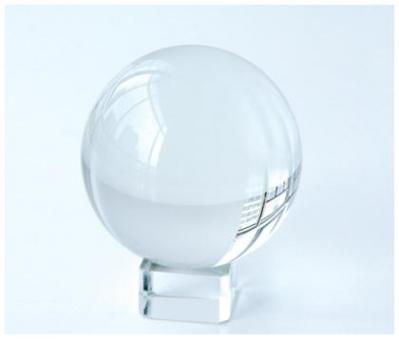

Lens Balls, Crystal Balls, Quartz Balls

The EDE-OP series optical round lens is made of H-K9L, LASFN9, H-ZLAF90, LASFH17, H-ZFA, K9 and other materials through a comlicated process. It has excellent transmittance, excellent mechanical properties and very low bubbles and impurities. The grade can be up to G5 grade, with ball diameter from 0.4mm-250mm.

Application

Optical components, lenses

Laser, Laser module, Laser cutting machinery.

Optical communication

Infrared application

Medical imaging

Quality Characteristics

Material: H-K9L, LASFN9, H-ZLAF90, LASFH17, H-ZFA, K9, etc.

Diameter: 0.4mm-250mm

Variation of ball diameter VDws: ≤0.2um

Lot diameter variation VDwL: ≤0.4um

Spherical deviation: ≤0.2um

Surface roughness: 0.08um

Surface cleanliness 20/10 (<Ra10nm)

Roundness<0.2um,

Batch tolerance<0.4um
